In our article titled What are Impact Traffic Doors? we noted that impact traffic doors are available in single leaf and double leaf sets. This article will specifically focus on single leaf impact traffic doors.

Impact entry doors

Definition of impact traffic doors

An impact traffic door is a type of hinge door which can endure both impact (read: rugged bumps and bruises) and traffic (meaning lots & lots of people, trolley jacks and warehouse vehicles) over an extended period of time in retail, commercial and industrial environments. We have a short video clip of commercial restaurant kitchen doors in action.

Applications of impact entry doors

  • hotels
  • hospitals
  • restaurants
  • retail stores
  • supermarkets
  • warehouses
  • postal service
  • staff entrances
  • shopping centres
  • commercial kitchens
  • food processing plants
  • pharmaceutical plants
  • commercial cold storage
Commercial restaurant kitchen doors

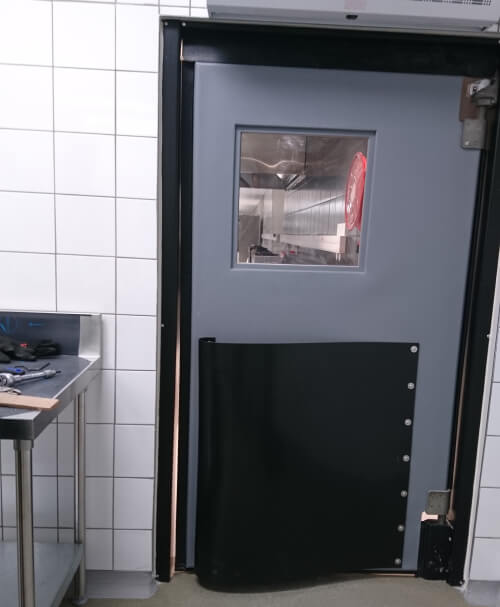

Single leaf with vision panel

Detail specifications of single leaf impact traffic doors

General features

Availability

Opens easily

Yes

Smooth operation

Yes

Self closing

Yes

Double action

Yes

Dimensions

Cell

Leaf width

620 mm to 1 380 mm

Leaf height

1 980 mm to 3 050 mm

Frame width

770 mm to 1 530 mm

Frame height

2 055 mm to 3 125 mm

Hinges


Top hinge

V-Cam

Bottom hinge

Pin in block

Construction

Cell

Frame

Galvanized steel or powder coated or stainless steel clad

Leaf skin

Moulded Polyethylene

Leaf core

Injected Polyurethane

Vision panel

Yes, 1, clear Polycarbonate

Perimeter edge gasket

Yes, rubber

Spring bumpers

Yes, 2

Other

Cell

Maintenance

Low

Cleaning

Water and soap

Standard sizes

41

Standard colours

7

Safe temperature range

-20ºC to +35ºC

Spring bumper spec single impact traffic door

Spring bumper each side of leaf

Industrial swing doors top hinge

Top V-Cam hinge

Summary

Strip Curtain Solutions is an impact traffic door supplier. Doors are available either as a DIY kit or we can supply and install. Give us a call or email us if you have any queries regarding single leaf Impact Entry Doors.

List of standard sizes for single leaf traffic doors
View colour range
Grey Colours
View colour range
Colour 1
